Aaronia has launched the ultra-broadband OmniLOG? 70600 small and compact omnidirectional antenna. Despite its small size it covers an extremely wide frequency range of 680 MHz to 6 GHz. Within the most important frequency bands the antenna reaches very high gain up to 6.5 dBi. It fits well with the SPECTRAN handheld spectrum analyzers but can also be used with any other spectrum analyzer brand.
AARONIA最新發布OmniLOG? 70600 寬帶全向天線，極寬的頻率覆蓋范圍：680MHz-6GHz，特別小巧緊湊。在絕大多數的重要頻帶內天線增益高達6.5dBi，不但完美適用于Aaronia SPECTRAN 手持頻譜儀，而且也適用于任何品牌的其它頻譜分析儀。

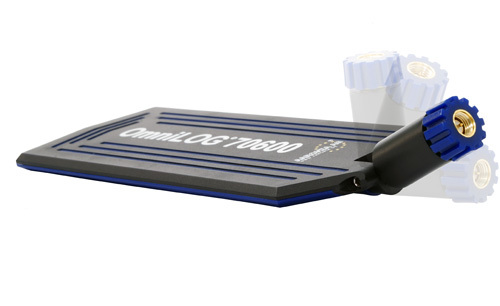

The frequency range covers the following, typical signal sources: GSM, CDMA, LTE, WiFi, ISM, DECT, Bluetooth, 5GHz WLAN, WiMAX. The Antenna offers a heavy-duty 90° knuckle base with SMA connector. The knuckle base is freely adjustable into each position and fixed by two special ball pressure screws.
OmniLOG? 70600 天線頻率范圍覆蓋以下典型信號源：GSM, CDMA, LTE, WiFi, ISM, DECT, Bluetooth, 5GHz WLAN, WiMAX。該天線提供可90° 旋轉的結實的SMA連接頭，通過2個特殊球形壓力螺釘，天線可自由調節至任何固定位置。

The OmniLOG antenna offers an omnidirectional measurement of field strength without the need to move the antenna to the source. This allows a direct field strength reading without any hassle, which isvery useful for measurements of e.g. exposure limits.
OmniLOG? 70600 天線提供對于電磁場強度的全向輻射測量，而不需將天線對準輻射源。OmniLOG? 70600 天線也很方便地獲得方向性的電磁場強度，比如在暴露限值測量中。

The PC Analysis-Software – MCS – supports the OmniLOG 70600. Using this software, the OmniLOG antenna can also be used with the SPECTRAN V3-series Spectrum Analyzers. It is extremely small size allows measurements without attracting attention or even covert measurements. Every OmniLOG Antenna offers a high-grade SMA male connector and as such can be connected directly to each SPECTRAN Analyzer.
德國安諾尼（AARONIA）的“MCS”軟件支持OmniLOG? 70600寬帶天線。使用這個軟件，OmniLOG? 70600寬帶天線也可以應用于SPECTRAN V3-系列的頻譜分析儀。由于天線尺寸很小，可以應用于隱蔽測量而不引起注意。每個OmniLOG? 70600寬帶天線提供高品質的SMA母頭連接口，可以直接連接到各個型號的SPECTRAN頻譜分析儀。
如有疑問，請即刻聯系安諾尼中國。

官方網站：www.elementstuff.com www.aaronia-china.cn

免費熱線：400-0606-683

專用郵箱：mail@aaronia-china.com
