The system consists of a complex measurement unit at each "pixel". Each unit consists of a Spectrum Analyzer from the SPECTRAN RSA series and connected isotropic broadband antenna which are all connected via network to a central server.

該系統由多個點陣組成，每個點陣包括復雜的測量單元，每個測量單元由一個Aaronia SPECTRAN RSA系列的遠程頻譜分析儀連接各向同性的寬帶天線組成，所有這些測量單元都通過網絡連接到中心服務器。

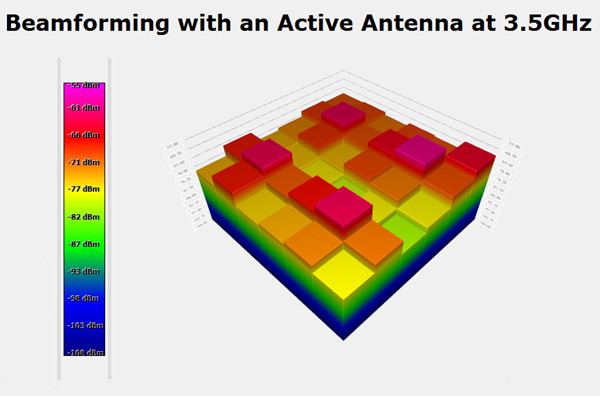

The antennas are arranged in equal distance in an X /Y grid. The measurement data (amplitude and/or frequency) are visualized as a "chess board-display". Each field of the chess board represents a measurement unit.

系統內按X/Y小格等距離的分布有一個天線。測量數據（幅度/頻率）可以通過軟件像棋盤界面那樣直觀顯示，棋盤上的每個場強都代表了一個測量單元。

An RF camera with 8x8 points (64 pixels resolution) requires 64 measurement units that way.This resolution seems to be rather small but already allows amazingly detailed measurements of antenna spreading characteristics or the graphical classification of radiated emissions during an EMC test.

RF攝像系統由8x8點陣（64點陣分辨率）64個測量單元測量單元，該系統看起來相當小，但這個分辨率足以得到令人驚訝的EMC測試時的測量細節，包括天線傳播特征，或者輻射發射的分類圖解。

The SPECTRAN RF VIEW saves considerable measurement time and allows very detailed information on the spreading patterns of emissions. The system can be extended to any size in order to reach much higher resolutions and is already successfully in use for research purpose and product evaluation of a leading telecommunications provider.

“SPECTRAN RF VIEW”系統可以節省大量的測量時間，可以得到有關輻射傳播模式的非常細節的信息。該系統可以擴展到任何尺寸已達到更高的分辨率。該系統已成功應用于領先的運營商，用于產品研發和評估。

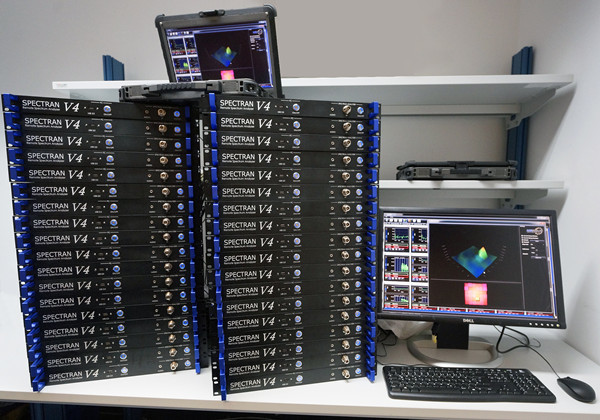

The system, a 32 pixel system with 6GHz range ,price is, despite the massive hardware insert, amazingly low. Versions with up to 20GHz bandwidth will also be available against higher charge.

一個6GHz頻率范圍的32點陣系統的價格超級實惠，盡管嵌入了大量的硬件設備。甚至高達20GHz寬帶的系統也不需要很高的費用。

The next evaluation step is the extension to a 3D camera system (additional Z-axis) to obtain more complex information.

下一步的評估系統將擴展到3D攝影系統（增加Z軸），以得到更為復雜的信息。

A real-time version, based on the latest SPECTRAN?V5 real time spectrum analyzer generation, is scheduled for 2015.

基于最新的SPECTRAN?V5實時頻譜分析儀版本已計劃在2015年推出。

Aaronia AG is a technology manufacturer based in Strickscheid / Germany. The company was founded in 2003 and mainly produces Spectrum Analyzers which are based on a patented analysing process. In 2004 Aaronia produced and shipped its first Spectrum Analyzer. Today’s purpose of the company is development, trade and sale of measuring equipment, technologies and rights in the field of low and high frequency measurement technology as well as shielding of RF, magnetic and E-fields.

AARONIA AG是德國的科技制造公司，公司成立于2003年，主要生產專利分析處理的頻譜分析儀。2004年AARONIA制造銷售了第一個頻譜儀，今天公司的目標是研發和銷售各類在LF和HF頻率場強的測量技術的測量設備，以及RF電磁場屏蔽材料等。
